IMX415 4K 30fps 120 degree distortion-free wide-angle night vision HDR industrial camera module

Brand Name : HAOZHOU / OEM

Model Number : HZ-IMX415 S1.0

Certification : CE / RoHS / FCC / ISO

Place of Origin : Shenzhen,China

MOQ : 1

Price : 28~45USD

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypay and others

Supply Ability : 500000 pieces/month

Delivery Time : 7 - 15 Work Days

Packaging Details : Tray+Anti-static bag in carton box

Mounting Type : OTG, UVC driver-free, USB plug and play

Description : USB Industrial camera module

compression format : YUV and MJPEG

USB camera : USB 2.0 connecting port

High frame rate : 3840*2160/30fps

Product program : CMOSM

Focusing : Fixed

Volatege : 5V

Lens size : 1/2.7"

FOV : 90°

Image color : GRB

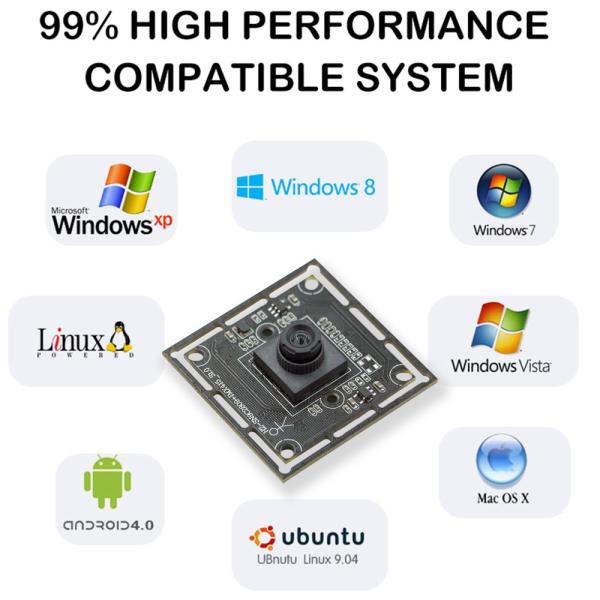

OS : Win XP\Vista 7 8 10 \Linux \os with UVC driver

Contact Now

IMX415 4K 30fps 120 degree distortion-free wide angle Industrial camera modules RGB CMOS image usb a Camera Sensor modules 8mp

IMX415 is a high-performance 1/2.8-inch CMOS image sensor launched by Sony, designed for high-resolution, low-light video and image acquisition. The sensor uses advanced back-illuminated (BSI) technology to significantly improve the sensitivity in low-light environments and ensure excellent night vision. With an effective pixel of up to 846 (3840×2160), it supports 4K ultra-high-definition resolution and high frame rate video recording to meet the needs of security monitoring, sports cameras, etc. for smooth picture quality. High dynamic range (HDR) multiple exposure technology effectively suppresses overexposure and underexposure, presenting richer light and dark details. This image sensor is ideal for security cameras in various monitoring applications such as anti-theft, disaster alarms and traffic monitoring systems or commercial complexes

1. Chip: IMX415

2. Output: USB2.0

3. Product size: 38*38mm

4. Customizable lens

5. Dual channel digital microphone

6. Support: video conferencing, face recognition, authentication comparison, QR code scanning, high-speed camera, robot vision.

Product program	CMOSM
CMOS	1/2.8inch IMX415
Image pixels	1.45um
Image Format	YUV/MJPG
Dynamis range	82dB
Image color	RGB
MIC	/
Type of Focusing	Manual focus/Auto focus
Exposure	Auto Exposure/Manual Exposure
Lens	f/on.4.3mm
Focus raege	default 600mm(It can be adjusted according to the shooting distance.)
Fiekd of view	90°
weight	150g
camera control	Saturation/Contrast/Sharpness
white balance	auto/manually/Cr,Cb:Requirements -12≤average≤+12
Applicable equipment	Industrial equipment, media equipment, network video conference, surveillance video POS machine, medical equipment, smart home, display stand, self-service equipment, Android equipment, advertising machine, industrial computer, ATM teller machine and other equipment.
Operating Voltage	5V
Working current	160-260mA
work rate	2W
Operating temperature	-10℃~+70℃
Drivers Temperature	Free drive
Resulution	Resulution	MJPG	YUY2
	3840*2160	30fps	1fps
	2592*1944	30fps	1fps
	2688*1512	30fps	1fps
	2048*1536	30fps	1fps
	1920*1080	30fps	1fps
	1600*1200	30fps	1fps
requested systems	WinXP/Win7/Win8/Win10/Wind/MAC OSX captin 10.11.4 and Linux/Android
Output Formats	>48%
Fixed Pattern Noise	650±10nm

IMX415 4K 30fps 120 degree distortion-free wide-angle night vision HDR industrial camera module
